LowProfile - Token creation work flow

דניאל.ע תמיכה קארדקום
עודכן

Guides:

#Low profile interface - EN (Step 1 +2)

#Charge (or Refund) token api - EN (Step 3)

WebHook tests environment:

https://webhook.site/#!/86509419-9f51-43c4-b8a3-76f8d28e338d

Steps

  • First you need to preform TOKEN creation by transfer operation = 3

And set a WebHook address to get LPC details for later by transfer the IndicatorUrl parameter



https://secure.cardcom.solutions/Interface/LowProfile.aspx?codepage=65001&Operation=3&TerminalNumber=1000&UserName=test9611&SumToBill=150

&CoinID=1&Language=he&ProductName=TestItem&APILevel=10&SuccessRedirectUrl=https://secure.cardcom.solutions/SuccessAndFailDealPage/Success.aspx&ErrorRedirectUrl=https://secure.cardcom.solutions/SuccessAndFailDealPage/Fail.aspx&IndicatorUrl=www.google.com&ReturnValue=1234&&AutoRedirect=true&IndicatorUrl= https://webhook.site/0622d97f-9670-47d4-9bcf-f0321455ea63

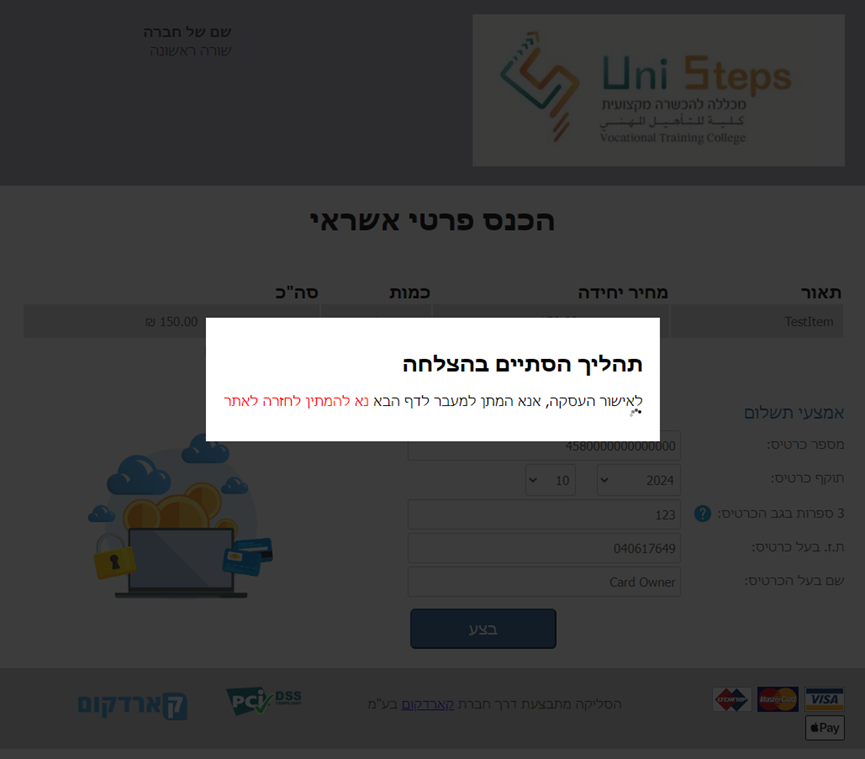

Transaction successfully made:

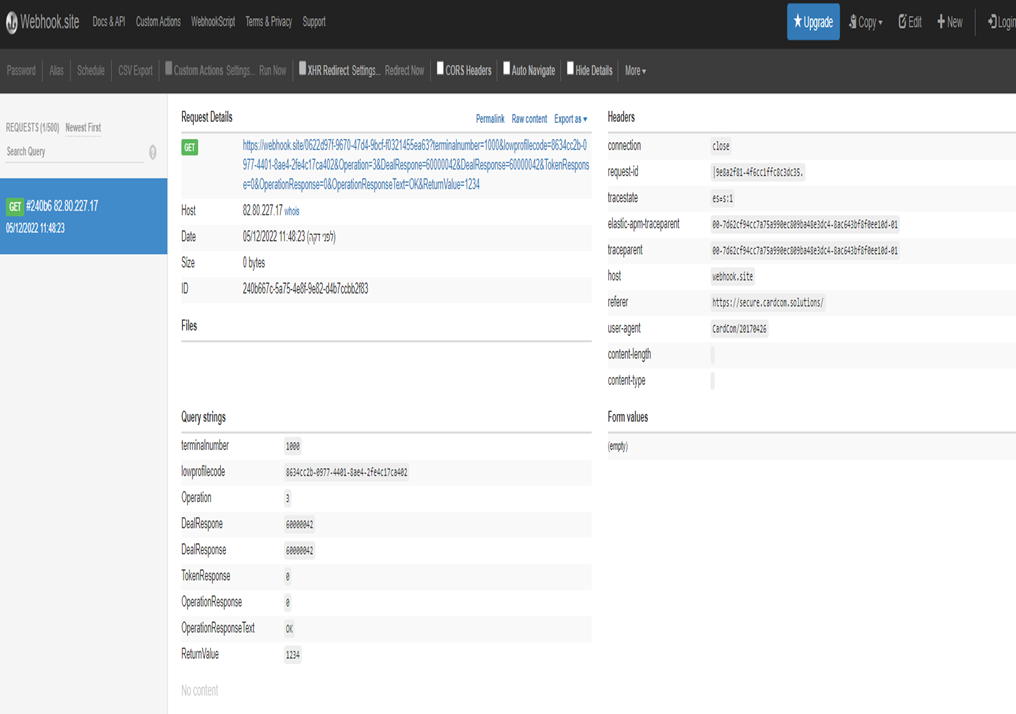

1.a) WebHook response:


  • Afterwards pull transaction details by using the LowProfileCode you've got from WebHook (by step 2 of the documentation):



https://secure.cardcom.solutions/Interface/BillGoldGetLowProfileIndicator.aspx?

TerminalNumber=1000&UserName=test9611&codepage=65001&LowProfileCode=8634cc2b-0977-4401-8ae4-2fe4c17ca402



2.a) Cardcom's server response (After decode):

ResponseCode=0&Description=Low Profile Code Found&terminalnumber=1000&lowprofilecode=8634cc2b-0977-4401-8ae4-2fe4c17ca402&Operation=3&ProssesEndOK=0&DealRespone=60000042&DealResponse=60000042&InternalDealNumber=127509183&TokenResponse=0&Token=4cf8e168-261e-4613-8d20-000332986b24&TokenExDate=20241101&CardValidityYear=2024&CardValidityMonth=10&CardOwnerID=040617649&NumOfPayments=1&ExtShvaParams.CardNumber5=0000&ExtShvaParams.Status1=700&ExtShvaParams.Sulac25=6&ExtShvaParams.JParameter29=2&ExtShvaParams.Tokef30=1024&ExtShvaParams.Sum36=15000&ExtShvaParams.SumStars52=0&ExtShvaParams.FirstPaymentSum78=0&ExtShvaParams.ConstPayment86=0&ExtShvaParams.NumberOfPayments94=0&ExtShvaParams.AbroadCard119=0&ExtShvaParams.FirstCardDigits=458000&ExtShvaParams.CardName=ויזה רגיל&ExtShvaParams.CardTypeCode60=2&ExtShvaParams.Mutag24=2&ExtShvaParams.CardOwnerName=Card Owner&ExtShvaParams.CardToken=4cf8e168-261e-4613-8d20-000332986b24&ExtShvaParams.CardHolderIdentityNumber=040617649&ExtShvaParams.CreditType63=1&ExtShvaParams.DealType61=01&ExtShvaParams.ChargType66=50&ExtShvaParams.TerminalNumber=1000&ExtShvaParams.BinId=0&ExtShvaParams.InternalDealNumber=127509183&ExtShvaParams.CouponNumber=89022150&ExtShvaParams.DealDate=20221205&ExtShvaParams.CardOwnerPhone=039436100&ExtShvaParams.HaveRecipient=false&CardOwnerEmail=testsite@test.co.il&CardOwnerName=Card Owner&CardOwnerPhone=039436100&ReturnValue=1234&CoinId=1&OperationResponse=0&OperationResponseText=OK









  • After that you need to preform TOKEN charge by transfer the next string:

https://secure.cardcom.solutions/interface/ChargeToken.aspx?codepage=65001&terminalnumber=1000&username=test9611&TokenToCharge.Token=4cf8e168-261e-4613-8d20-000332986b24&TokenToCharge.CardValidityMonth=10&TokenToCharge.CardValidityYear=2024&TokenToCharge.SumToBill=150&TokenToCharge.JParameter=5&TokenToCharge.APILevel=10



Cardcom's server response (After decode):

ResponseCode=0&Description=OK&InternalDealNumber=127513849&Token=4cf8e168-261e-4613-8d20-000332986b24&Mutag_24=2&Sulac_25=6&First_Payment_Sum_78=0&Const_Patment_86=0&IsEMV=True&Uid=22120512415008823958126&BinId=0&IsJ2ChackIsValid=True&Tokef_30=1024&CardNumStart=458000&CardNumEnd=0000&CardTypeCode_60=2&CardName104=%d7%95%d7%99%d7%96%d7%94+%d7%a8%d7%92%d7%99%d7%9c&FileNumber96=89&CouponNumber=89022166

(ResponseCode=0 means Charged successfully)
